PlantDB Synchronization Tool

Overview

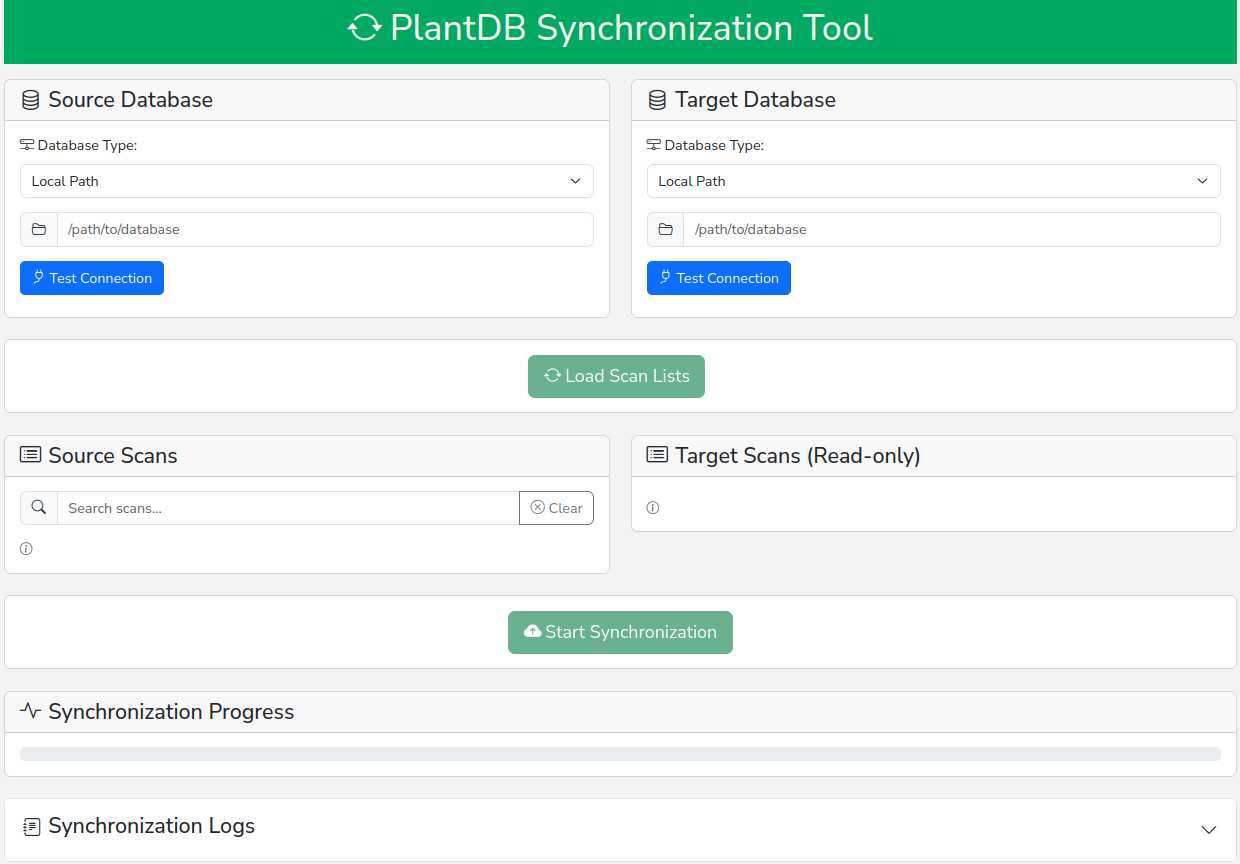

The PlantDB Synchronization Tool is a web-based application that allows users to synchronize databases between different sources. It provides an intuitive interface for managing database synchronization across various connection types.

Features

• Support for multiple database connection types:
• Local filesystem
• SSH/SFTP remote connections
• HTTP REST API
• Real-time synchronization progress tracking
• Search functionality for scan filtering
• Detailed synchronization logs
• User-friendly interface with intuitive controls

Getting Started

Launching the Application

Call the entrypoint:

sync_app

You amy also run the synchronization tool using Python:

python -m plantdb.client.sync_app

The default port is 8050.

You can specify a different port using the --port argument:

python -m plantdb.client.sync_app --port 8051

For a complete list of options, call sync_app -h.

Usage Steps

1. Configure Source Database

   • Select the database type (Local Path, SSH/SFTP, or HTTP REST API)
   • Fill in the required connection details:
     • For Local Path: Enter the filesystem path
     • For SSH/SFTP: Provide hostname, path, username, and password
     • For HTTP REST API: Enter the API URL
   • Click "Test Connection" to verify the connection

2. Configure Target Database

   • Follow the same steps as the source database configuration
   • The target database will store synchronized data

3. Load Scan Lists

   • After configuring both databases, click "Load Scan Lists"
   • The tool will display available scans from both databases
   • Scans already present in the target database will be disabled (shown in gray)

4. Select Scans to Synchronize

   • Use the search box to filter source scans by names
   • Select the scans you want to synchronize using the checkboxes
   • The target scans list is read-only and shows existing scans

5. Start Synchronization

   • Click "Start Synchronization" to begin the process
   • Monitor progress through the progress bar
   • View detailed logs in the expandable "Synchronization Logs" section

Tips

• Always test connections before attempting synchronization
• Use the search functionality to easily find specific scans
• Monitor the synchronization logs for detailed progress information
• The tool prevents synchronizing scans that already exist in the target database
• The interface provides visual feedback about connection status and synchronization progress

Support

For issues or questions about the PlantDB Synchronization Tool, please refer to the project documentation or contact your system administrator.
